The SGS® DR Series Advantage
Key Advantages
- Fits all NEMA/IEC shaft diameters. Custom diameters available.
- Solid ring shaft grounding option
- More economical than SGS® SR Series split ring when the motor can be uncoupled for system installation

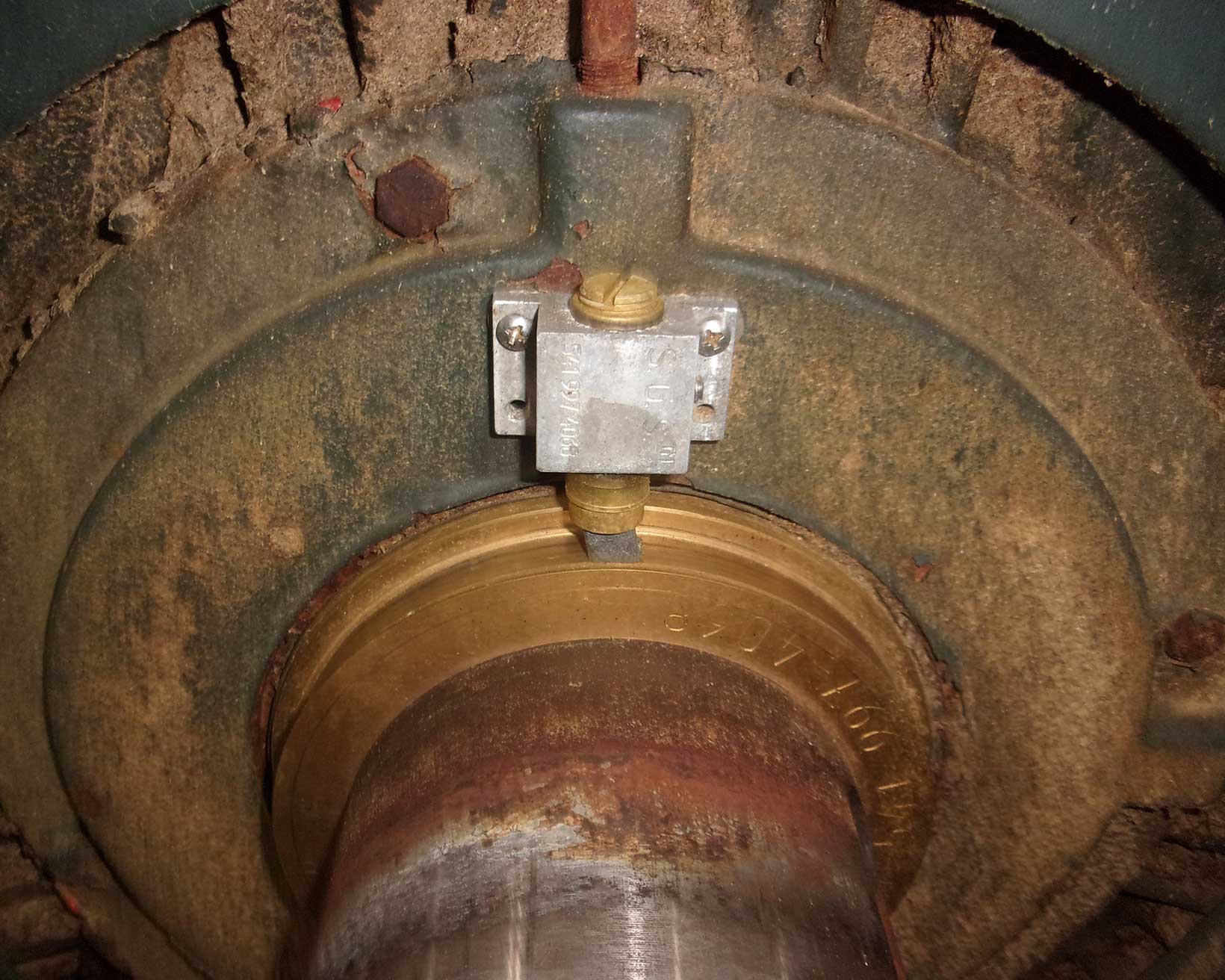

- Rings last for decades with infrequent brush change
- Engineered and manufactured in the USA
Less Wear
Just like the SR Series, the DR Series has a very robust ring the brush rides on. The brush and ring are designed to wear together ensuring a clean least path of resistance for current to always flow.
Not susceptible to most environmental contamination like microfilament or small brushes that ride directly on the motor shaft.
Key Features

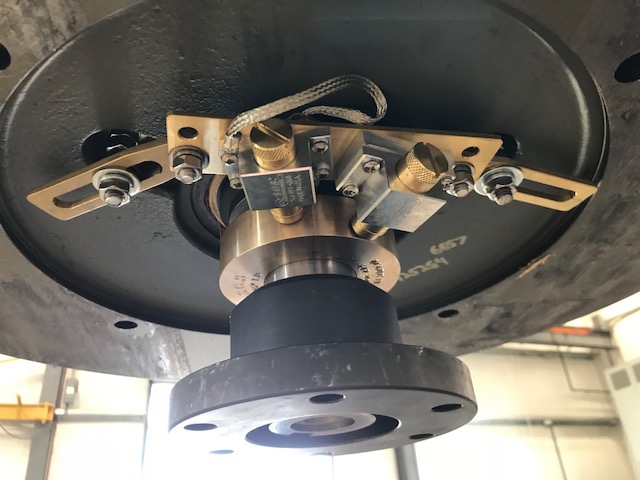

Multiple bracketing options from a small single brush holder installed onto the motor frame or a universal bracketing system that ties into the motor’s bearing retainer bolts (drive end).
Flexible Install
Multiple bracketing options from a small single brush holder installed onto the motor frame or a universal bracketing system that ties into the motor’s bearing retainer bolts (drive end).
DR Series Compatibility
Part Numbers for Standard NEMA and IEC Frame Sizes
Also available in custom shaft sizes. Contact DP&A Sales for more information.
NEMA Frames
U = Shaft Diameter
- U= 5/8”
- DR006250SB (SB= single brush)
- DR006250DB (DB= dual brush)
- U= 7/8”
- DR008750SB
- DR008750DB
- U= 1-1/8”
- DR011250SB
- DR011250DB
- U=1-3/8”
- DR013750SB
- DR013750DB
- U=1-5/8”
- DR016250SB
- DR016250DB
- U= 1-7/8”
- DR018750SB
- DR018750DB
- U= 2-1/8”
- DR016250SB
- DR016250DB
- U=2-3/8”
- DR023750SB
- DR023750DB
- U=2-5/8”
- DR026250SB
- DR026250DB
- U= 2-7/8”
- DR028750SB
- DR028750DB
- U= 3-3/8”
- DR033750SB
- DR033750DB
IEC Frames
- DR05510SB (14mm shaft diameter) (SB= single brush)
- DR014960SB (38mm)
- DR016530SB (42mm)
- DR018890SB (48mm)
- DR021650SB (55mm)
- DR021650DB (DB= dual brush)
- DR23620SB (60mm)
- DR23620DB
- DR027550SB (70mm)
- DR027550DB
- DR031490SB (80mm)
- DR031490DB
- DR033460SB (85mm)
- DR033460DB
